UI editing

Many games have a layer of text and buttons over the world: a title, a score, a Start button. You can move and resize those too, change their words and colors, and look at every screen of your game: the title, the game itself, the pause screen, game over.

It works on UI made with HTML. Read what it can’t do yet.

Scene and UI

If your game has UI the editor can edit, the top bar shows Scene | UI. Press UI (or U) to edit the UI. The scene dims, and the list shows the UI.

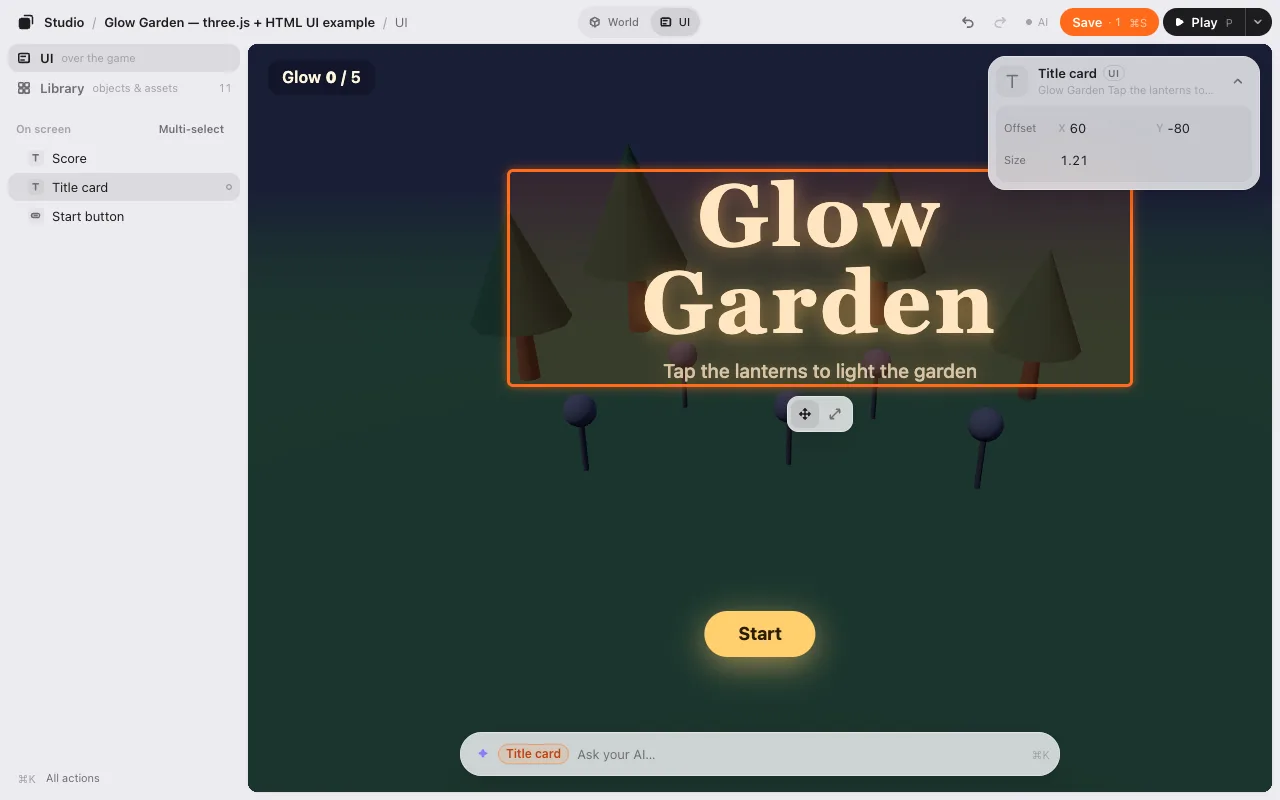

The UI layer: the title card selected and moved, the world dimmed behind it
  • Click a piece of UI to select it, and drag it to move it.
  • The strip under it has Move and Size. + and − resize too, or type a number in Size on the card. Its middle stays where it is.
  • Undo and Redo work across both layers.

Press Scene (or U) to go back. While you edit the scene, the game’s UI is hidden so it isn’t in your way. The eye next to the switch (or ShiftU) shows it faded. Clicks still go through to the scene.

On a phone, the switch is two icons at the top of the game.

Screens

If your game has more than one screen, the top of the list names the one you see: Title ⌄ 1 of 4. Press it and pick another screen (Playing, Paused, Game over). The game shows that screen, and the list shows what’s on it. Your game doesn’t run for this: when you press Play, it starts on its own first screen again.

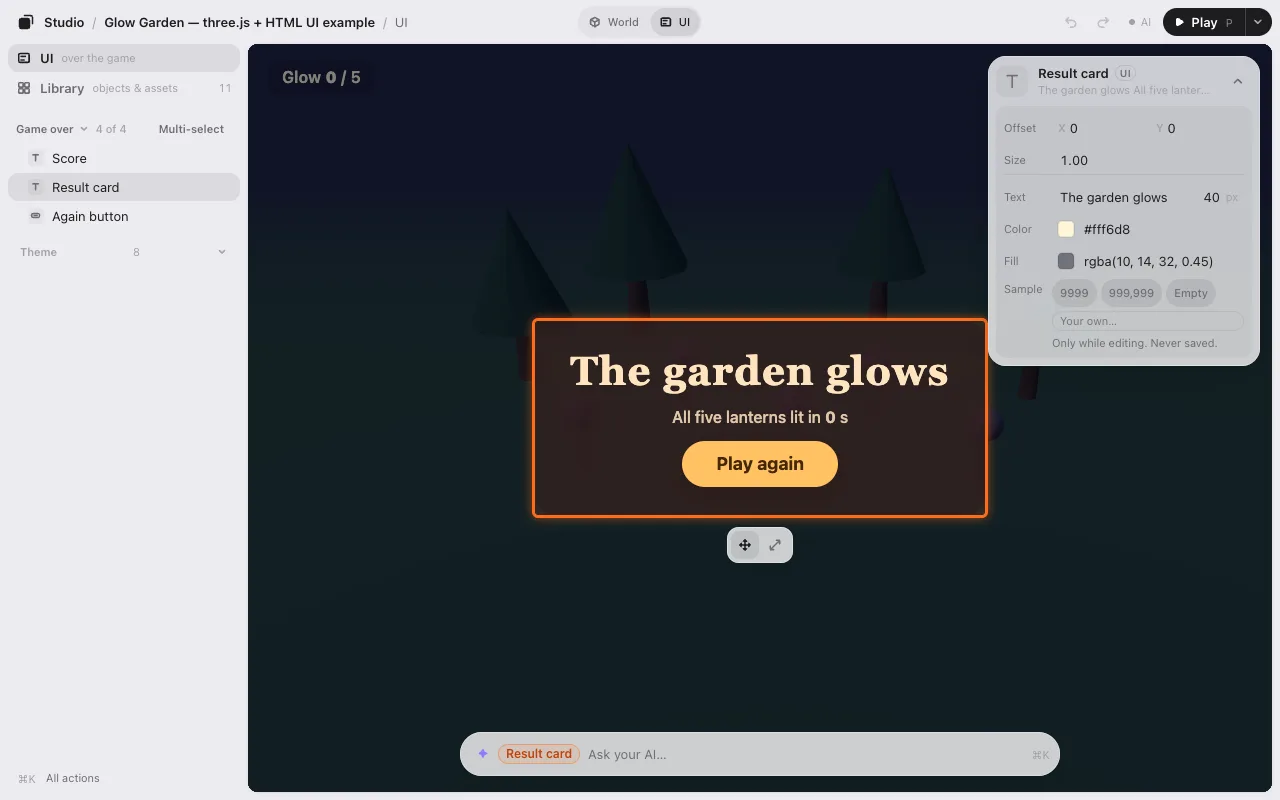

The screens menu over the list, and the game over screen picked

Words and colors

Select a piece of UI. Under its offset and size, the card shows what you can change:

  • Text: its words, and their size in px.
  • Color: the color of the words. Fill: the color of the box (for a button, or a box with a background).
  • ↺ puts a value back to your game’s own.

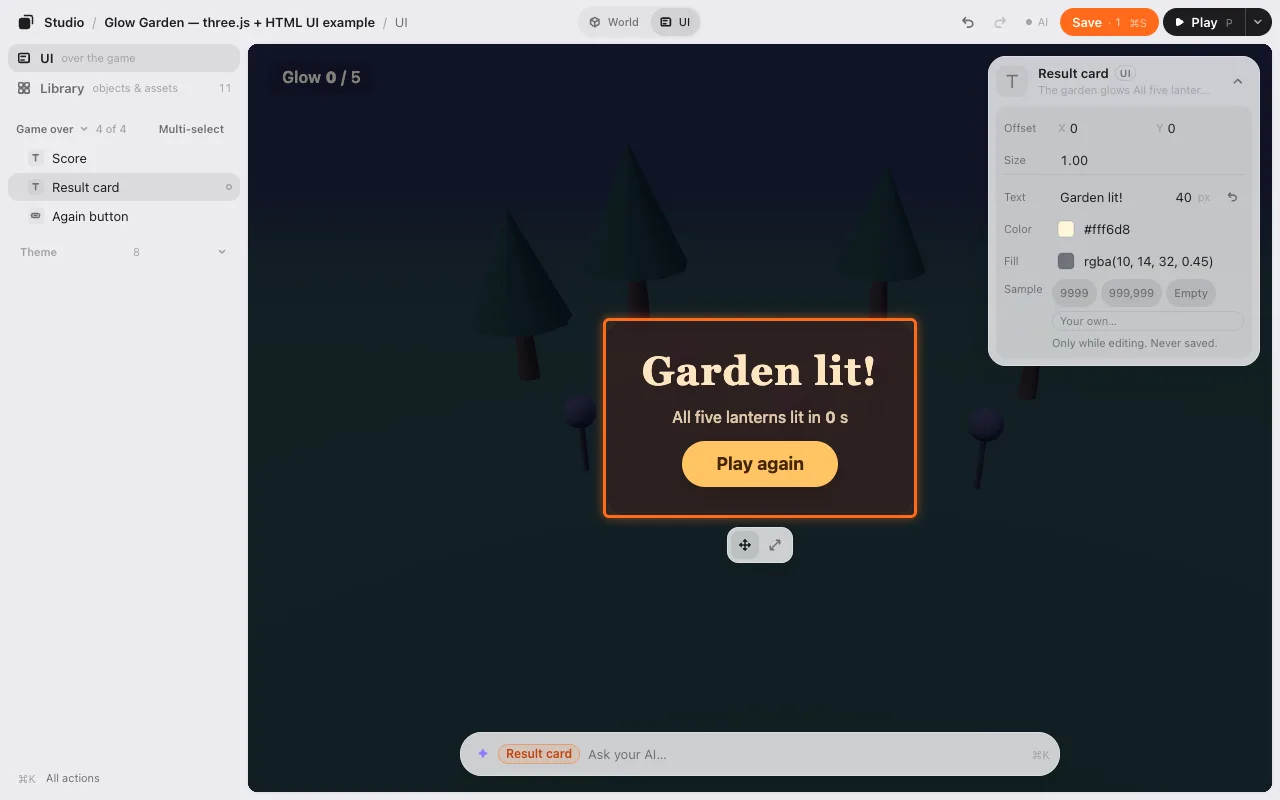

The game over heading selected, its words changed on the card

Each change is one step of Undo and one change to Save.

Buttons: Normal, Hover, Pressed, Disabled

A button also has State. Press Hover to see the button as it looks under the mouse, Pressed as it looks while pressed, and Disabled as it looks when it can’t be used. You can still move it. Change Color or Fill there, and you change only that look.

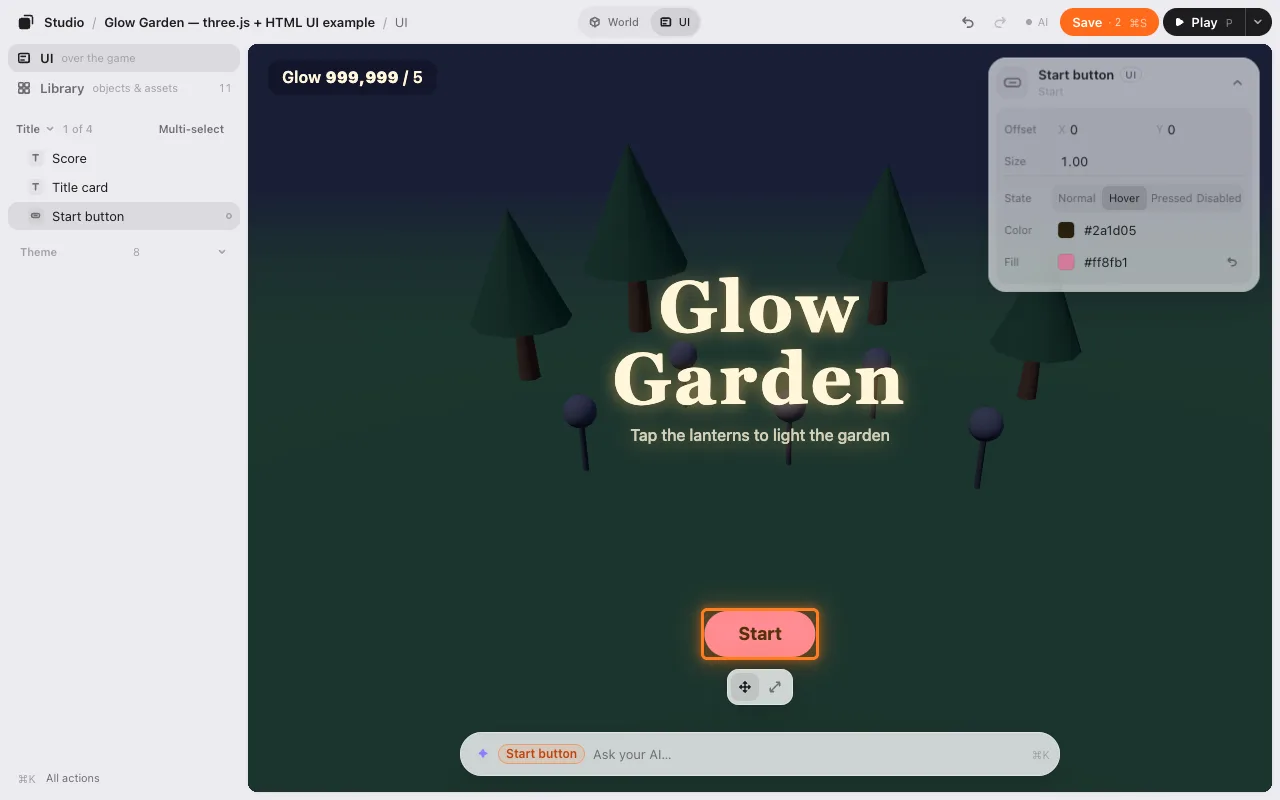

The Start button shown as hovered, with its hover fill changed

Sample values

Your game stands still while you edit, so the score says 0. To check that a big number or a long name still fits, select the score and pick a Sample: 999,999, A very long player name, Empty, or type your own. Samples are only there while you edit. They’re never saved.

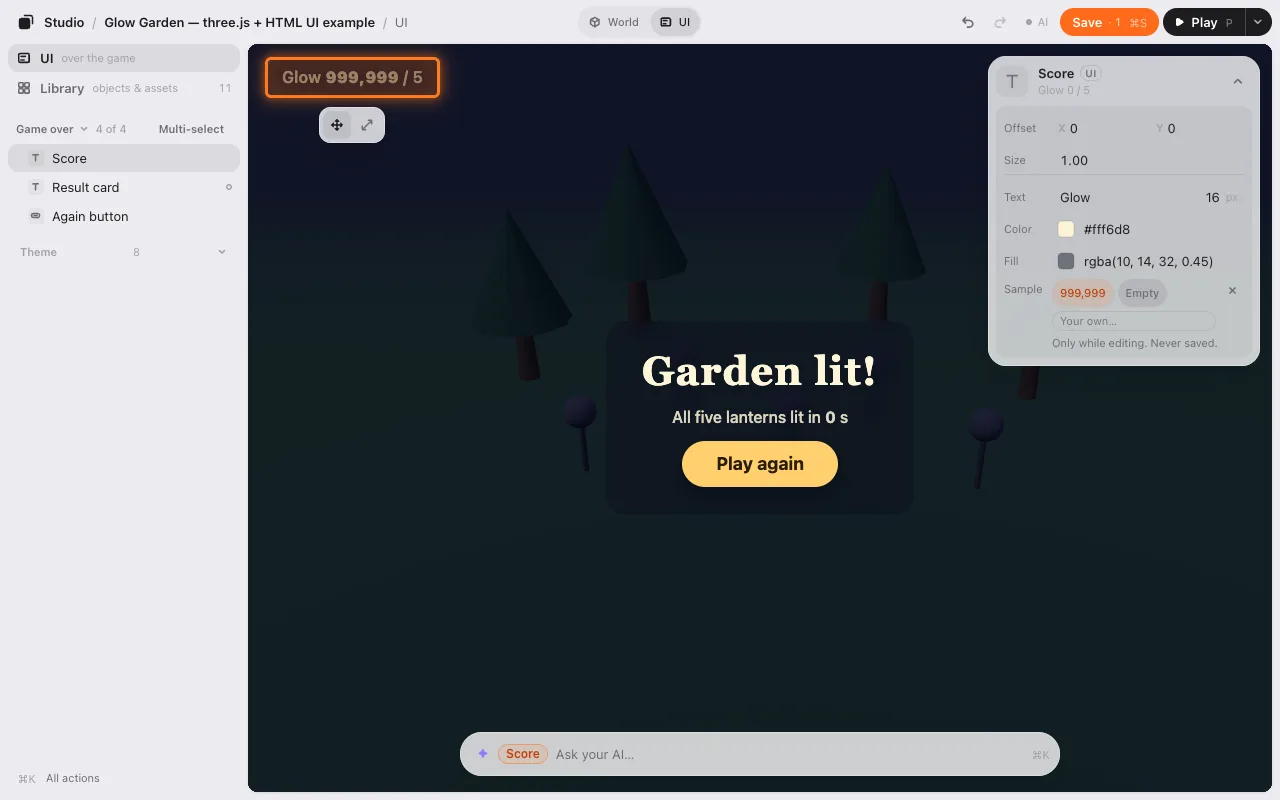

The score showing the sample 999,999

Theme

If your game keeps its colors and fonts in CSS variables, Theme under the list shows them. Change one, and every piece of UI that uses it changes at once.

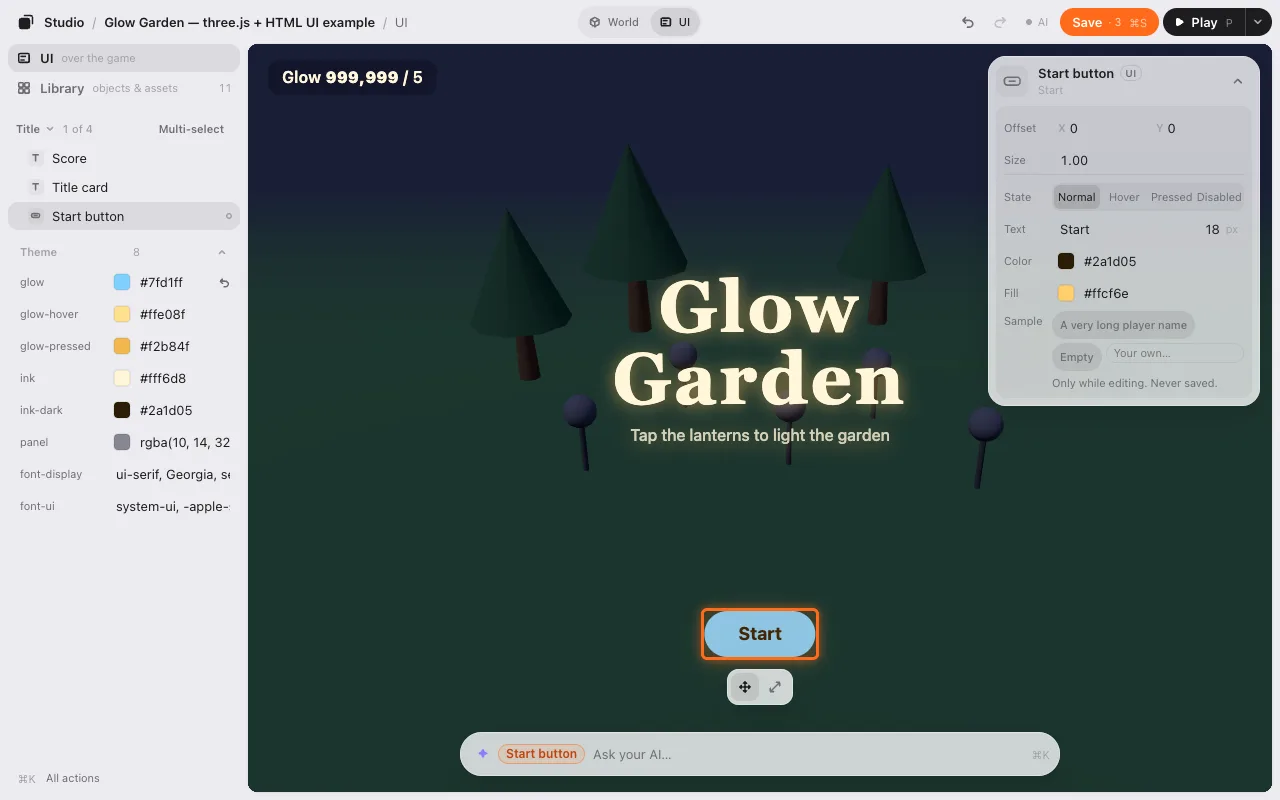

Theme open under the list, the glow color changed: the Start button follows

No Scene | UI switch?

The editor only shows UI your game has marked. Ask your AI: “let me edit the UI in Game Studio.” It marks each piece (the title, the score) in your game’s HTML, and each screen. Ask it to put your colors in a theme, too, if you want the Theme rows.

Save

Save writes where you moved each piece, how big it is, its new words and colors, and the theme. Your game reads it when it starts, like the rest of your layout, so the title is where you put it and says what you wrote, with or without the editor. Your AI can then write it into your game’s code.

What it can’t do yet

  • Only HTML UI. A HUD drawn inside the game (in Phaser, PixiJS or three.js) comes in a later stage.
  • No turning, duplicating or deleting, and no new text, buttons or pictures yet.
  • One size for every screen width: no separate phone layout yet.
  • Pieces whose position the game changes itself (an animated score, say) aren’t listed.

Next: Make with AI.
